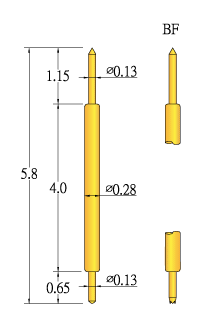

DB-031 5.7m/m (Pd)

• Material & Finishes
• Plunger -TOP : SK4 (Be Cu / Pd Alloy) Gold(No) Plated.
• Plunger -Bottom : SK4 (Be Cu/ Pd Alloy) Gold(No) Plated
• Barrel : P.B.(Brass) Gold Plated
• Spring : SWPB(SUS) Gold Plated
• Mechanical
• Spring Force : [25] grams @ [O.65] mm
• Full Travel : [l.O] mm
• Recommend Travel : [O.65] mm
• Mechanical Life : [200]K
• {Operating Temp : [-5℃_120℃]}
• Electrical
• {Bandwidth : [-O.80] dB @ [19.6] GHz }
• Current Rating : [2] A
• {Rated Insulation Voltage : [6] V }
• Contact Resistance : <[lOO] mΩ
• {Self Inductance: [1.25] nH }
• {Capacitance : [1.62] pF }
